Feature | Example | |
1、 Objective side telecentric design, no distortion within DOF 2、 No need to change working distance when zooming 3、 High magnification ratio 10X 4、 Continuous zooming, meet different measurement requirements 5、 Support 10MP 1” camera, Max. FOV 60.6X45.5mm |
| |
Application —— | ||
Quick measurement for big FOV | ||
| ||

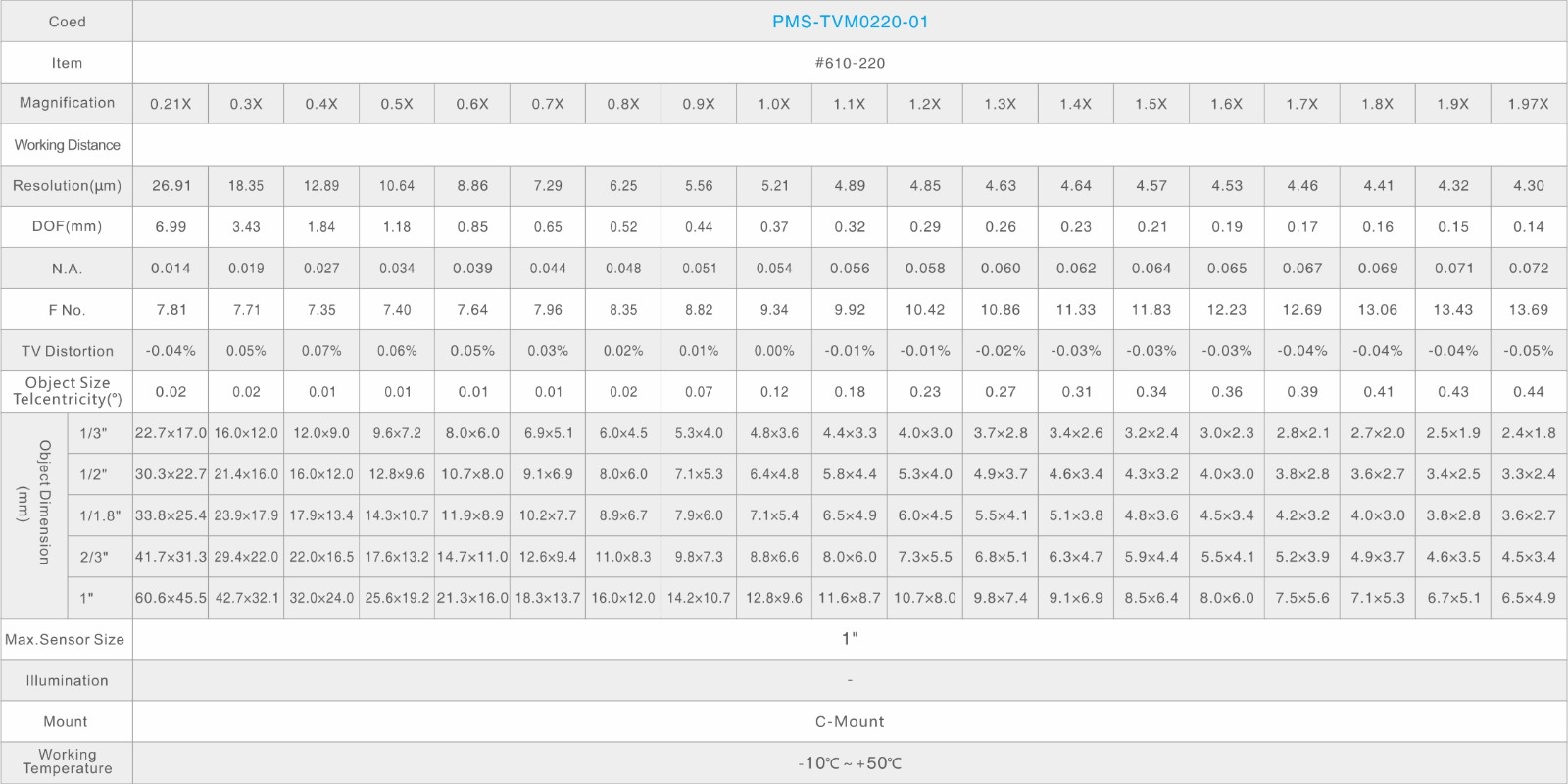

Telecentric Zoom Lens Parameter
——
| ||
Actual image |
|
|
| ||
PCB inspection | PCB inspection | Metal part profile | ||
|
|
| ||
Metal part profile | Mini PCB 0.2X | Mini PCB 1.4X | ||
Note：When taking image, the lens can change the FOV according the the inspection requirements, while changing the magnification. | ||||
